Integrating Datto RMM

Ricky Cecchini
  • Updated

The integration with Datto RMM provides the ability to pull in endpoint data from Datto RMM to the Infrastructure > Endpoints location and also allows triggering RMM commands through the Automations feature.

To learn more, please refer to the sections below.

About the Datto RMM Integration

When integrated with CloudRadial, the Datto RMM integration will work similar to the CloudRadial agent pulling in data from endpoints. It will also allow CloudRadial to search for and display Devices and Components. These can be used to trigger Automations, which can be used to empower clients to self-service themselves with selected downloads and deployments of software, scripts, and more.

Understanding API User Permissions

Before generating keys, Partners should understand the flexibility of permissions in Datto RMM.

Partners will need to generate API keys through a user within Datto RMM. As a best practice, it is best to create a standalone user with API access to get the keys. However, since this may incur costs, you can also use an API key generated from any user in your system.

Note that your experience with RMM command selection will vary with user access to Component Levels. RMM components are designated security levels in Datto RMM, so the appropriate API user level is ultimately up to you as the Partner.

In short, the API user with security levels will correlate to the components that will be available to use within CloudRadial. As an example, here is a user with Basic security permissions:

Basic Rick.png

Generating API keys as this user will display only the components tagged with a Basic level.

Basic Levels.png

Keep this in mind as you consider which user to leverage for your API keys.

1. Generating Datto RMM API Keys

To generate an API key from Datto RMM:

  1. Log into the Partner Center of Datto RMM

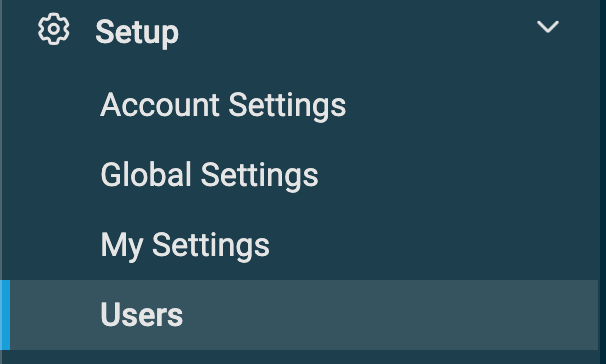

  2. Select Setup > Users from the left-hand menus


  3. Based on the section details above, you can either create a new user OR leverage an existing user.
    • To create a new user, use the Create User button at the top right of the User menu and follow the prompts to create them. Select the Create User button at the bottom to finalize your user creation.
  4. Once you have the user in mind with the appropriate security access to components, select them from the user list.

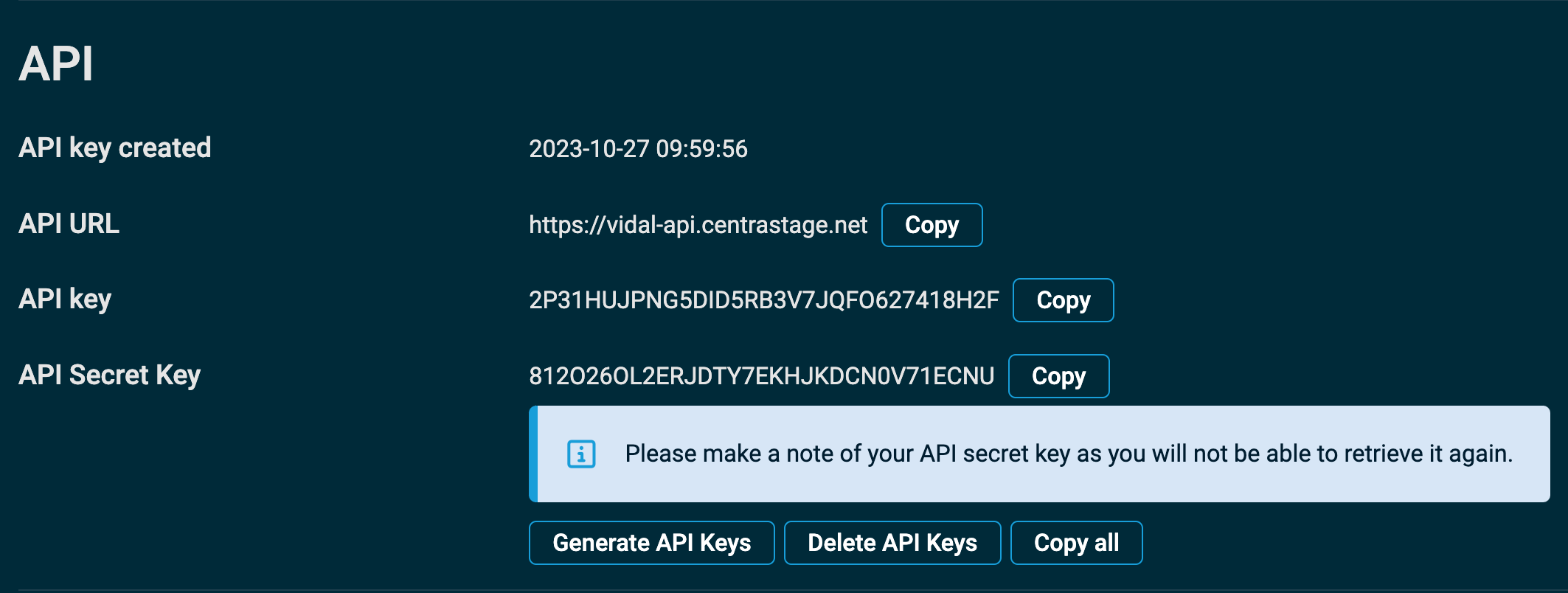

  5. Locate the API section and select the Generate API Keys button

    API Generation.png
  6. Be sure to take note of the following as we'll use them in CloudRadial:
    • API URL
    • API Key
    • API Secret Key
  7. Use the Save User button at the bottom to finalize the key creation

2. Enabling the Datto RMM Integration in CloudRadial

Once you have the keys from Datto RMM, you'll need to enter them into CloudRadial. To do so:

  1. Log into CloudRadial

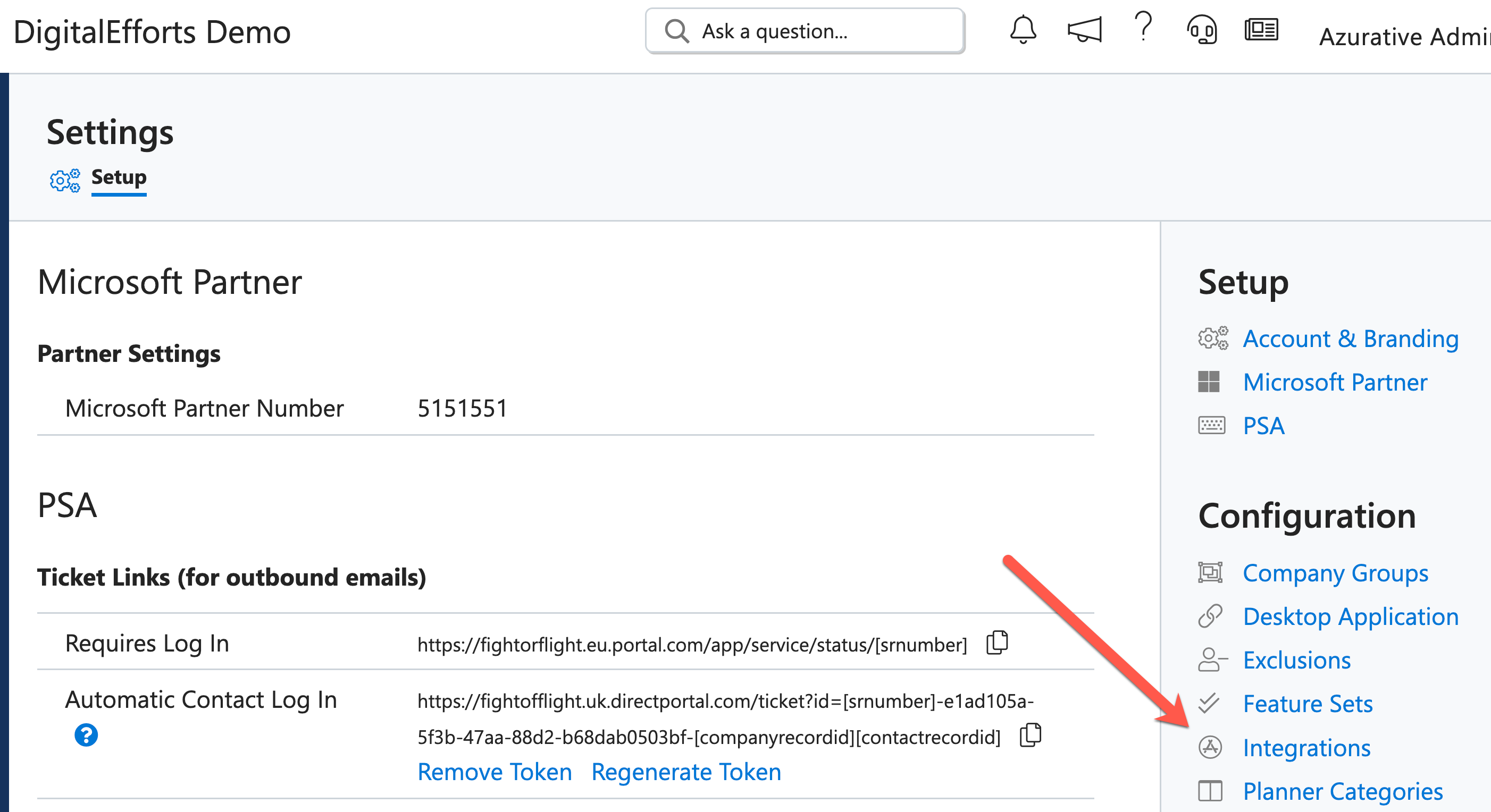

  2. Navigate to Partner > Settings
  3. Select Integrations from the Configuration column on the right


  4. Select Datto RMM from the list
  5. Check on the checkbox for Enable Datto RMM?
  6. Enter your API URL, API Key, and API Secret into the available fields
  7. Select Test Credentials to check the connection
    • If you see a Success message at the bottom, you're good to go
    • If you see a Failure, ensure that you have copied the three values properly. If you continue to run into issues, reach out to support@cloudradial.com for assistance.
  8. Select Submit to save the settings

3. Tying the Datto RMM Integration at the Client level

Now that you have set up the integration, let's go ahead and customize what you would like a specific company to be able to access.

Once complete, you will be able to pull devices and components from your Datto RMM connection.

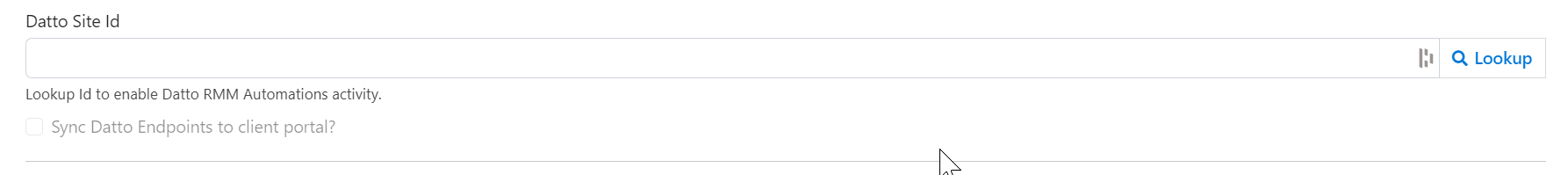

  1. Go to Partner > Clients > Select Client > Edit > Integrations > Datto Site Id
  2. Click the Lookup button and select the corresponding Id from the search.
  3. You will see a checkbox, Sync Datto Endpoints to client portal?, only select this option if you wish to pull in your Datto RMM endpoints into the Infrastructure > Endpoints tab in CloudRadial for this client.
  4. Click Submit

Now when you run Automations with the Datto Quick Job you will see that company in the list to select to run the quick job. For more information on Automations and the Datto Quick Job, click here.

Note: You will ONLY see companies and endpoints that are tied in at the Client level. Often if there is an issue and you can't see any options to select, you may have not done step 3 yet.

4. Syncing Datto RMM Endpoints

You can now sync Datto endpoints into CloudRadial, if you haven't already, follow the steps below:

  1. Go to Partner > Clients > Select Client > Edit > Integrations > Datto Site Id
  2. Click the Lookup button and select the corresponding Id from the search.
  3. Select the checkbox that says, Sync Datto Endpoints to client portal?
  4. Click Submit

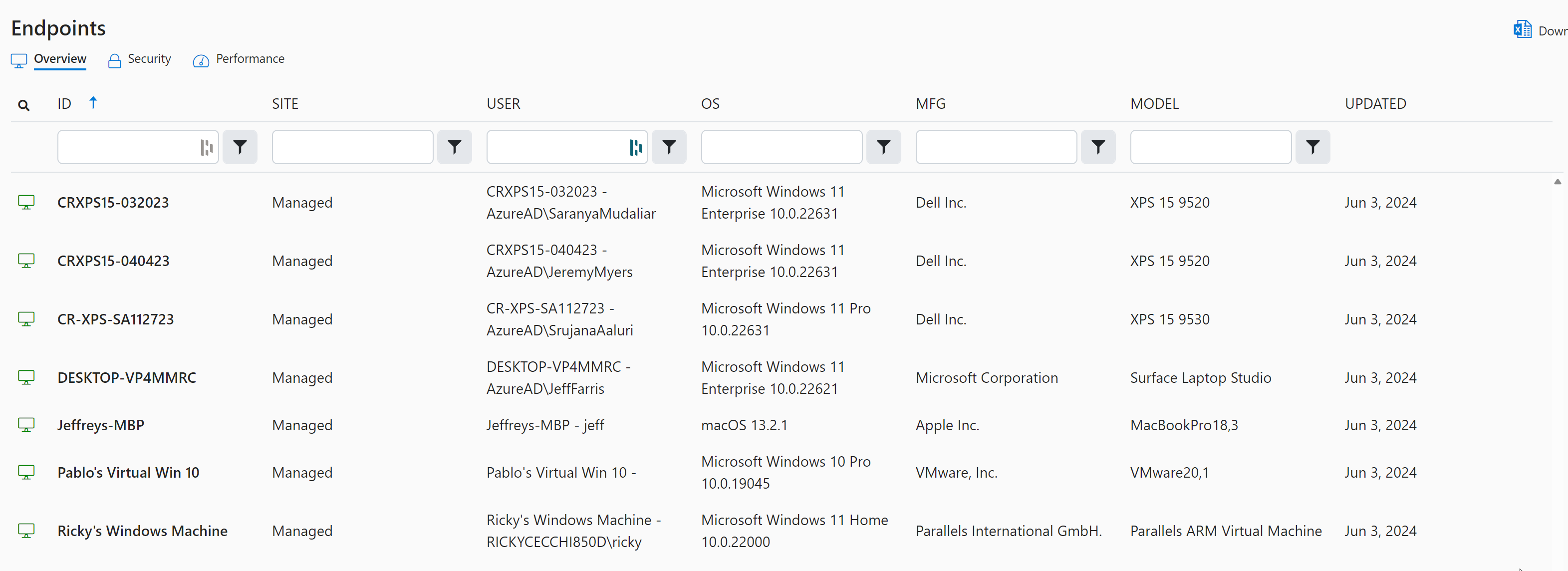

You should now be able to see endpoint and server data coming in from Datto RMM directly in CloudRadial under Infrastructure > Endpoints and Servers for that company.

  • Datto Type, Laptop and Desktop will show in the portal under Endpoints
  • Datto Type, Server will show in the portal under Servers

Policies are not able to be used with Datto RMM Endpoints.



Note: Due to API limitations with Datto RMM there is some data that we cannot get from Datto RMM that our agent can pull in. Technically you can run Datto RMM and our agent at the same time and we will do our best to match and merge, however it is recommended to just use one or the other as there could be some issues depending on how machines are identified.
